UV-2513

High Quality Industrial Level UV Flatbed printer
UV-2513 Flatbed Printer|Ricoh G5/G6 Gray Scale Printhead|100mm Ultra-thick Material|56.7㎡/h High-speed Printing|Environmentally friendly UV ink
Click here to learn more
REQUEST A QUOTE
COMPARE MODELS
SHARE PRODUCT
PARTNER WITH US FOR YOUR FUTURE
Why did a Startup Choose A-GOOD-PRINTER
We treat every printer in a serious and pragmatic attitude: strictly control the purchase of parts, and owns rigor quality detection system of production links.Letting every consumer trustworthy in buying and using is the responsibility and the duty of our products; to solve every customer's problem is the only objective of our after-sales service.
Introduction

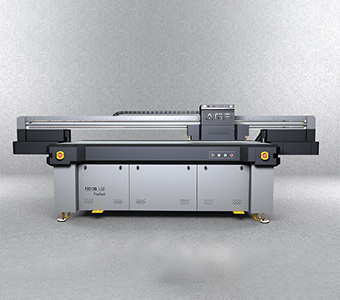

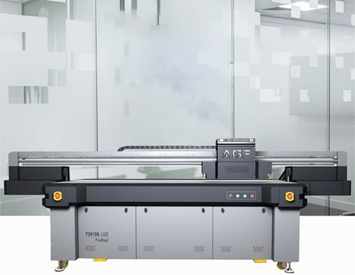

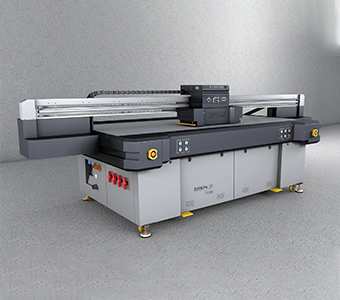

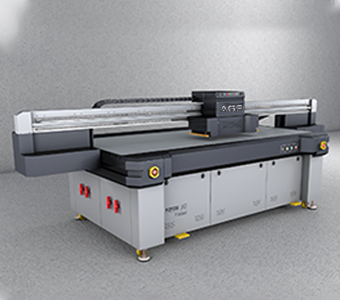

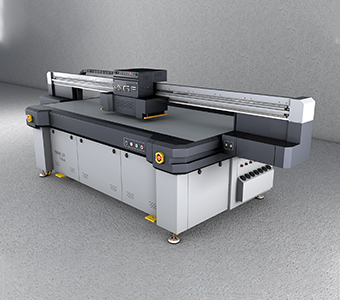

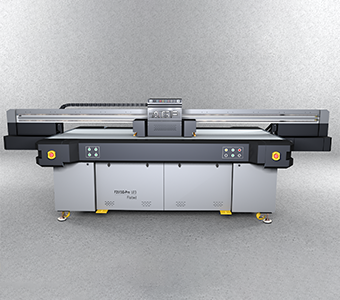

UV-2513 Printer introduction
UV-2513 industrial flatbed printer: Features Ricoh Gen 5/Gen 6 (7PL) Grey Scale Micro Piezo Printhead (2-8 heads), 56.7m²/h print speed on 2500x1300mm area, handles 1-100mm media (acrylic/ceramic/leather). Integrated 4-zone vacuum, auto thickness detection, eco UV ink, and RIP compatibility for signage/industrial parts production.
Get Quote Now
Parameter
UV-2513 Printer Parameter
The UV-2513 industrial flatbed printer delivers high-speed production (56.7 m²/h) on a 2500 x 1300 mm bed, equipped with Ricoh Gen5/6 gray Scale printheads (2-8 heads) for precision printing on media ranging from 1 to 100 mm in thickness. Its integrated 4-zone vacuum adsorption, auto-thickness detection, and eco UV ink system ensure reliability for signage, industrial parts, and custom manufacturing.
Model UV-2513
Printhead Ricoh Gen 5/Gen 6(7PL)Grey Scale Micro Piezo Printhead
Printhead No. 2-8H
Print Size 2500mm*1300mm
Print Thickness 1mm-100mm
Ink Type Environment-friendly UV Curing Ink
Ink Color Standard: C M Y K Le Lm W, Yamish is optional
Print Speed (8H-All Color) High Speed Mode: 56.7m²/h; Production Mode: 34.2m²/h; High Quality Mode: 29.2m²/h
RIP Software Standard: PhotoPrint. Print Factory and Onyx are optional.
Ink Supply System Automatic Negative Pressure Ink Supply System
Ink Monitoring System Voice Intelligent Alarm System
Media Type Acrylic, Aluminum Board, Ceramic Tile, Glass, Wood Board, PC, TPU, Leather, PVC Board, etc.
Media Adsorption System 4 Vacuum Zones, Available for Different Types of Media
Lifting Function Carriage Height Automatic Adjustment, Intelligent Detection of Material Thickness
Ventilation Device Ventilation Fan is Necessary. Air Exhaust Volume:600 CFM
Print File Format TIFF, JPEG, PDF, EPS, PNG, AI, BMP, etc.
Power/Power Rating 220V 50HZ/60HZ/8.0KW
Computer Configuration Computer System: Win10, 64 bit, Port USB 2.0
Working Environment Independent, Clean, Low Dust, Less Sunshine, Well Ventilated Workshop; Temperature:15°C-28°C; Humidity:40%-70%
Machine Size/Weight 4206*2200*1500mm(L*W*H) 1300kg
Packaging Size/Weight 4400*2300*1750mm(L*W*H) 1600kg
Features
UV-2513 Printer Features
UV-2513 industrial flatbed printer: equipped with Ricoh G5 grayscale printhead and 10-color ink system, breaking through the 100mm ultra-thick media limit, integrating four-zone strong adsorption + static elimination + laser thickness measurement, ensuring high-speed and high-precision printing, an all-round industrial printing solution.
KCMY+LcLm+W+V
KCMY+LcLm+W+V
Achieve 98% Pantone color gamut coverage
Platform Suction System
Platform Suction System
Strong suction to fix irregular/smooth media
Static Eliminating Device
Static Eliminating Device
Eliminate ink flying/burrs/material sticking
High precision guide rail
High precision guide rail
±0.01mm positioning accuracy, ensuring no deviation
Auto Media Thickness Detection
Auto Media Thickness Detection
1-100mm media automatic calibration printhead height
Eco UV Ink System
Eco UV Ink System
Environmentally friendly UV ink, 0 VOC emissions, dries instantly
What Can We Do with UV Printers
Creativity At Your Fingertips
UV Printer can be applied to a wide range of industries, basically processing industries can be used, advertising industry; luggage industry; handicraft industry; toy industry; decorative painting industry; packaging box industry; tile mural; signage industry; DIY makeup packaging materials.
Technical Support
Technical Support
Through cooperation with world famous print head manufacturers and software suppliers, we integrate sophisticated and practical technology into our fabric printers.
Provide one-year warranty for the machine
Provide a detailed installation tutorial for the machine
Provide guidance documents for solving common problems of DTF printers
Provide online remote guidance
People's View Of The Product
What Are People Saying About The UV-2513?
We love hearing what our customers say about our products

Get Quote Now
PARTNER WITH US FOR YOUR FUTURE
Relevant Products
We provide one-stop service, including DTF printer, shaker machine, UV DTF printer, DTF ink, PET film, powder, etc.
Epson I3200-U1 Printhead
Printhead Quantity:3/4
Printing Size:1600mm
RIP Software:Flexiprint
Power Supply:220V 50~60HZ 135W
Machine size/weight:2970*850*1563mm 259kg
More+
Printhead:Epson I3200-U1
Print Width:600mm
Print Colors:W+CMYK+V/G+W+CMYK+V
Printhead Quantity:3or4
More+
UV3040 Printer
Epson l3200-U1 HD Printhead
Standard: CMYK+W+V Optional: YMCK LC LM+W
Print Media:Glass,plates, various signs, crystal, PVC, acrylic, leather plastic, etc.
Software:Maintop,FlexiPRINT,RIIN
More+
Printhead:3*Epson F1080/I1600-U1
Print Width:300mm
Print Colors:CMYK+W+V
RIP Software:Riin/Flexiprint/Maintop,etc
More+
3*Epson I3200-U1
Standard: CMYK+W+V
UV6090 printer works with regular or irregular surfaces, suitable for metal, leather, wood, paper, plastic, ceramic, and glass customization.
Maintop/Flexiprint/RllN, etc
More+
Submit a Quick Quote
Name:
Country:
*Email:
*Whatsapp:
How did you find us ?
*Inquiry:
PARTNER WITH US FOR YOUR FUTURE
Question Answers
If I have some technical problem, how can you help us to solve it?
We will be responsible for after-sales service. You can send us detailed descriptions, photos, or videos, then our technician will give a professional solution accordingly.
Is there any warranty for this printer?
Yes, we provide 1 year warranty for the printers and with perfect after-sales service.
How do you deliver the printer to me?
1. If you have a freight forwarder in China, we can arrange to deliver the goods to your freight forwarder’s warehouse. 2. If you do not have a freight forwarder in China, we can find cost-effective freight forwarders and transportation methods for you to deliver the goods to your country.
What's your delivery time?
Usually 7-15 working days after receiving the payment based on the order volume.
Are you a manufacturer or trade agent?
We are the top manufacturer of digital printers in China with more than 20 years experience. We can provide digital printers and accessories.
What certificates do your printers have?
CE certificate for DTF printer, MSDS certificate for the ink, PET film, and powder.
How can I install and start to use the printer?
Normally we provide detailed installation tutorial videos and user manuals. And we also have professional technicians to support you when you have any questions.
