DTF printer is the most widely used printing equipment for personalized custom clothing. It can be printed on a single piece or mass-produced. The most important thing is that DTF printer meets the national environmental protection standards, so as to avoid waste discharge characteristics. At present, many countries such as Europe have imported our DTF printer clothing printing equipment.

Introduction

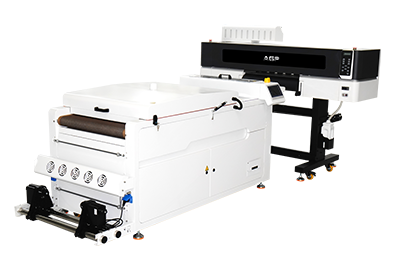

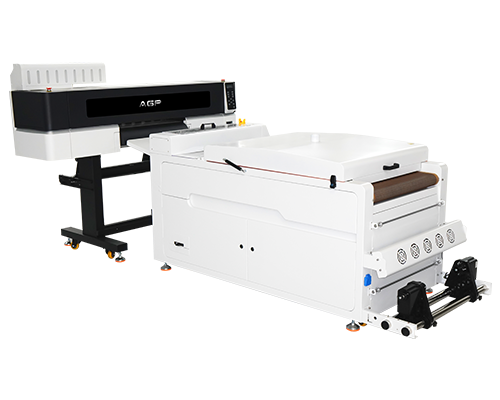

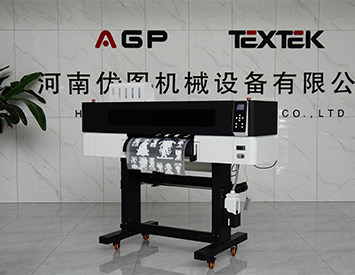

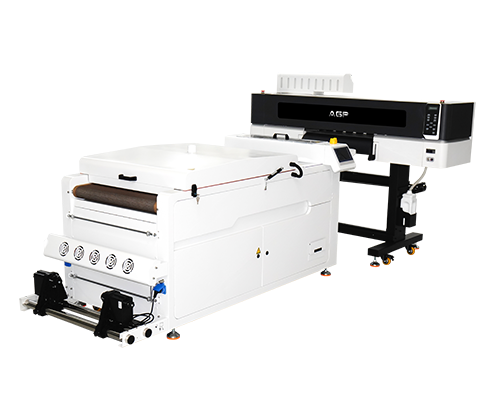

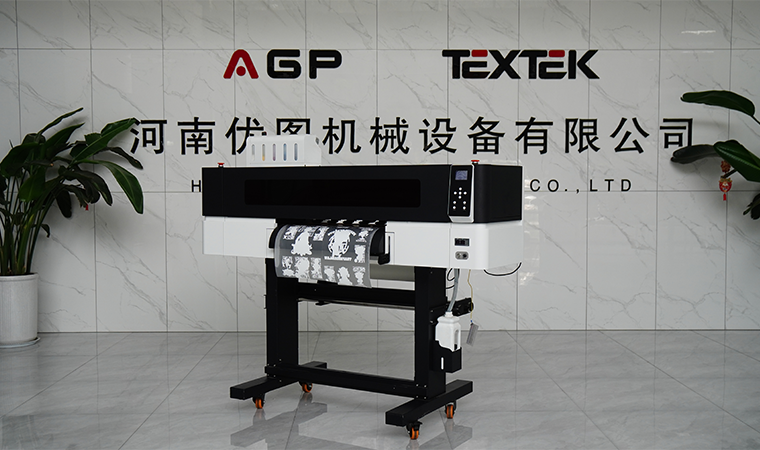

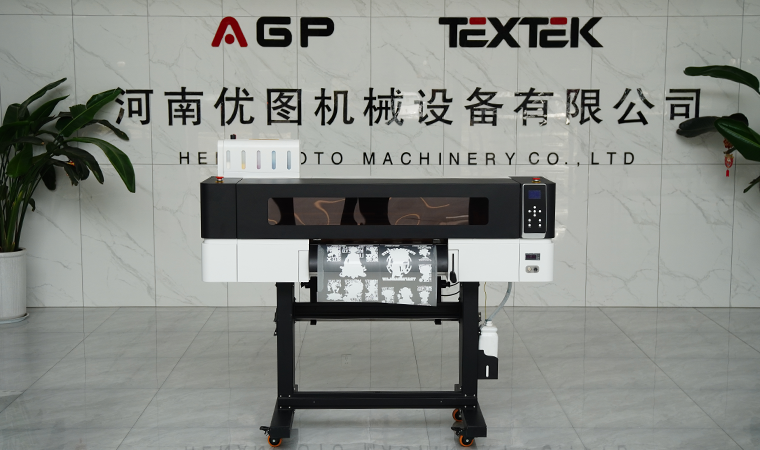

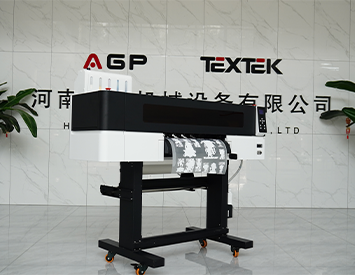

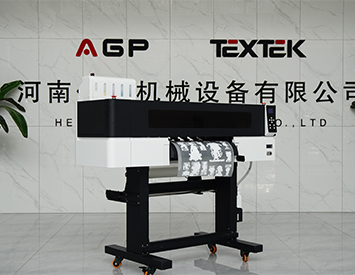

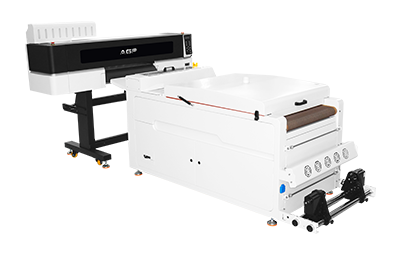

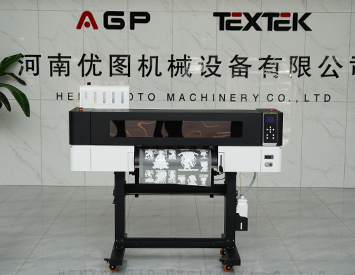

DTF-T656 Printer introduction

The DTF-T656 industrial printer revolutionizes direct-to-film printing, enabling single-operator production of photo-quality PET film transfers with no minimum order requirements. Engineered for efficiency, it achieves speeds up to 42m²/h (high-speed mode) using Epson I3200-A1 printheads in 5/6-head configurations(CMYK+W/FR/FG/FM/FY+W).

Get Quote Now

Parameter

DTF-T656 Printer Parameter

Features 5/6 Epson I3200-A1 printheads for high-speed CMYK+W/FR/FG/FM/FY+W printing at 42m²/h (720*1800DPI) | 600mm print width | Auto powder shaker & film handling | 2-stage heating for >3-level wash fastness | 110V/220V global voltage | Industrial reliability with white ink circulation.

Model		DTF-T656
Printhead		Epson I3200-A1
Quantity		5	6
Printing Color		CMYK+W	CMYK+FR/FG/FM/FY+W+W
Printing Speed	High speed mode	720*1800DPI 6PASS 42m²/h	720*1800DPI 6PASS 14.9m²/h
	High precision mode	720*1800DPI 6PASS 34m²/h	720*1800DPI 6PASS 11.6m²/h
Printing Size	600mm
RIP Software	Riin/Flexiprint/Cadlink/Maintop/NeoStampa
Media Transfer	Auto-feeding and take-up system
Heating Method	Front/middle 2-stage heating
Ink System	Auto ink supply, white ink circulating, and stirring
Power Supply	110V/220V 50~60HZ 400W/6200W
Work Environment	Temperature:20°C-30°C humidity:35%-65%
Machine Size/Weight	Printer	17958001590.2mm 230kg
	Powder Shaker	97026321002mm 367kg
Packaging Size/Weight	Printer	1940770880mm 245kg
	Powder Shaker	215012501200mm 454kg

Features

DTF-T656 Printer Features

With its Epson printheads and multiple quantity options, you can achieve exceptional print quality with fast speeds. The ability to print in a wide range of colors ensures vibrant and eye-catching results. The advanced features, such as auto-feeding and take-up system, independent heating, and efficient ink system, enhance productivity and reduce downtime.

Anti-Collision System

The trolley is equipped with an anti-collision device to protect the print head from damage in the event of an obstacle.

High Precision Guide Rail

Using upper silver guide rails, smooth and noiseless, ensuring efficiency and stable operation of the trolley.

CMYK+FR/FG/FM/FY+W+W Cartridges

Support 6-color printing, fuller color, large-capacity ink cartridges, reduce frequent ink refilling, saving time.

Emergency Button

The printing process can be stopped immediately if any problem occurs, ensuring operator safety and preventing potential equipment damage.

Paper Pressing Wheel

Integrated paper pressing wheel, paper feeding more smoothly

Paper Out Alert

Automatically stop printing when there is no paper to avoid ink waste and platform pollution.

3 Big Steps

Printing Step

The working principle of DTF Printer is to print the pattern on the transfer film, shake the powder and dry it with a powder shaking machine, and then press it with a hot press to transfer the pattern on the film to various fabrics. A DTF Printer all-in-one machine plus hot stamping printing film, printing ink, hot melt adhesive powder, it only takes 5 minutes to hot stamp a piece of clothing!

1

Printing, dusting, shaking and drying powder

2

Heat transfer

3

Finished product

What Can We Do with DTF Printers

Creativity At Your Fingertips

DTF printers can print on light and black fabrics, are not limited by fabrics and colors, especially suitable for DIY printing. Suitable for leather, bags, shoes, hats, garments, socks, masks, gloves, umbrellas, plush toys, knitted underwear, swimwear and other textile and textile crafts.

Technical Support

Through cooperation with world famous print head manufacturers and software suppliers, we integrate sophisticated and practical technology into our fabric printers.

Provide one-year warranty for the machine

Provide a detailed installation tutorial for the machine

Provide guidance documents for solving common problems of DTF printers

Provide online remote guidance

People's View Of The Product

What Are People Saying About The DTF PRINTER?

We love hearing what our customers say about our products

Get Quote Now

PARTNER WITH US FOR YOUR FUTURE

Relevant Products

We provide one-stop service, including DTF printer, shaker machine, UV DTF printer, DTF ink, PET film, powder, etc.

DTF-TK1600 DTF Printer

Printhead:Epson I3200-A1

Quantity:5/6

Printing Size:1600mm

RIP Software:Riin/Flexiprint/Maintop/CAD Link,etc

Ink System:Auto ink supply,white ink circulating and stirring

Machine size/weight:2970*850*1565mm

More+

DTF-T652/653/654 DTF Printer

Printhead:Epson I3200-A1

Quantity:2/3/4

Printing Size:600mm

RIP Software:Riin/Flexiprint/Maintop,etc

Media Transfer:Auto-feeding and take-up system

Printer Dimension:1795*800*1590.2mm 230kg

More+

DTF-T30 DTF Printer

Printhead:2/3 Epson I1600-A1

Print Width:300mm

Print Colors:CMYK+W,CMYK+FR/FG+W

Printhead Quantity:2/3

Computer System:Windows

Max Printing Speed:6PASS 4m² / h, 8PASS 3m² / h, 12PASS 2m² / h

More+

Submit a Quick Quote

PARTNER WITH US FOR YOUR FUTURE

Question Answers

If I have some technical problem, how can you help us to solve it?

We will be responsible for after-sales service. You can send us detailed descriptions, photos, or videos, then our technician will give a professional solution accordingly.

Is there any warranty for this printer?

Yes, we provide 1 year warranty for the printers and with perfect after-sales service.

How do you deliver the printer to me?

1. If you have a freight forwarder in China, we can arrange to deliver the goods to your freight forwarder’s warehouse. 2. If you do not have a freight forwarder in China, we can find cost-effective freight forwarders and transportation methods for you to deliver the goods to your country.

What's your delivery time?

Usually 7-15 working days after receiving the payment based on the order volume.

Are you a manufacturer or trade agent?

We are the top manufacturer of digital printers in China with more than 20 years experience. We can provide digital printers and accessories.

What certificates do your printers have?

CE certificate for DTF printer, MSDS certificate for the ink, PET film, and powder.

How can I install and start to use the printer?

Normally we provide detailed installation tutorial videos and user manuals. And we also have professional technicians to support you when you have any questions.
