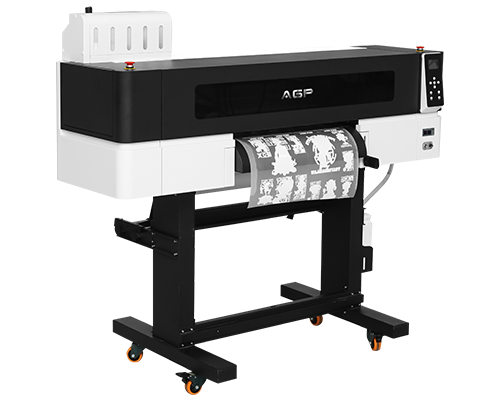

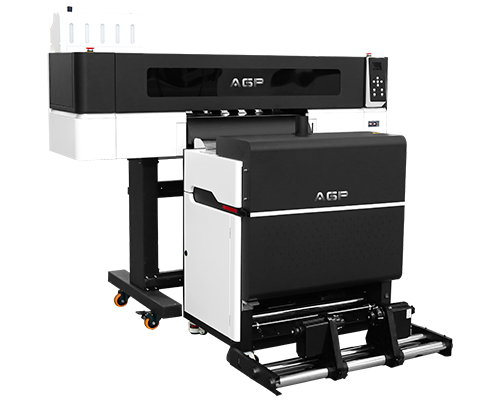

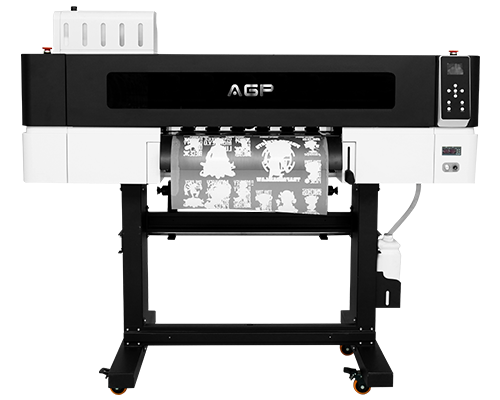

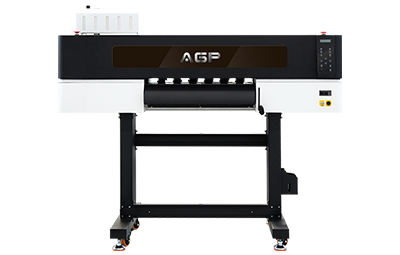

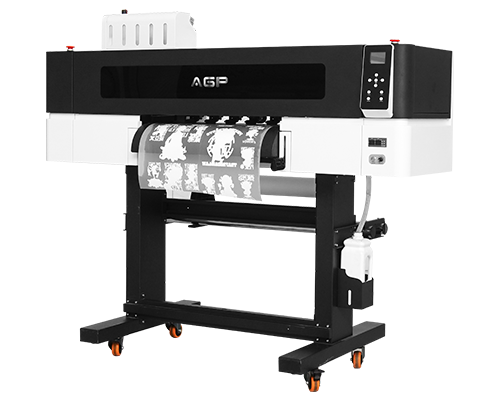

DTF-T652/653/654

PARTNER WITH US FOR YOUR FUTURE

Why did a Startup Choose A-GOOD-PRINTER

DTF printer is the most widely used printing equipment for personalized custom clothing. It can be printed on a single piece or mass-produced. The most important thing is that DTF printer meets the national environmental protection standards, so as to avoid waste discharge characteristics. At present, many countries such as Europe have imported our DTF printer clothing printing equipment.

Introduction

DTF Printer introduction

DTF Printer is a printing machine that can print patterns on PET Film. The printer can operate multiple devices by one person, and there is no need for a minimum order quantity to achieve a minimum order. The speed of proofing and bulk goods is fast, the cost is low, the color is bright, and the fastness can reach more than 4 levels of washing, which completely subverts the traditional tedious process of various printing. DTF Printer can easily achieve photo-level effects, as long as you provide clear high-definition picture files when doing heat transfer, you can achieve photo-level effects.

Get Quote Now

Parameter

DTF Printer Parameter

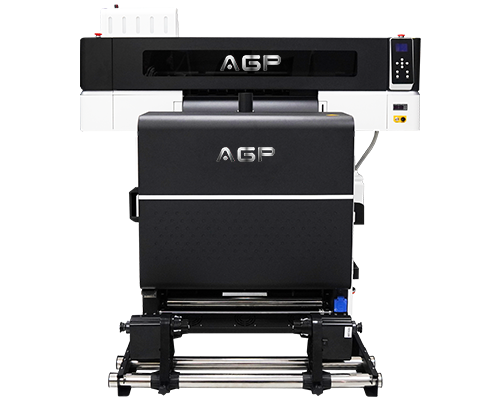

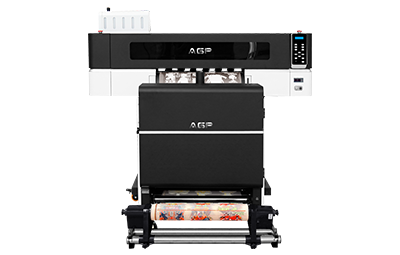

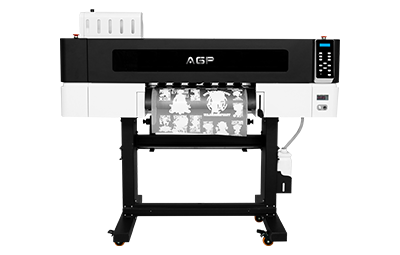

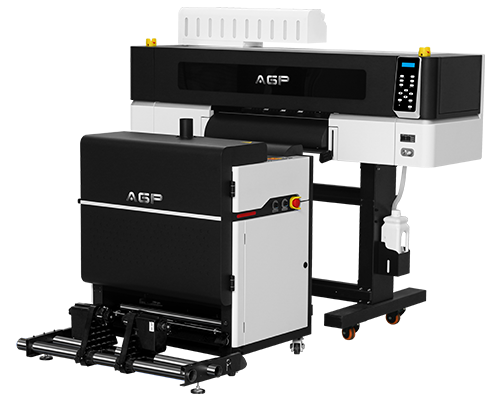

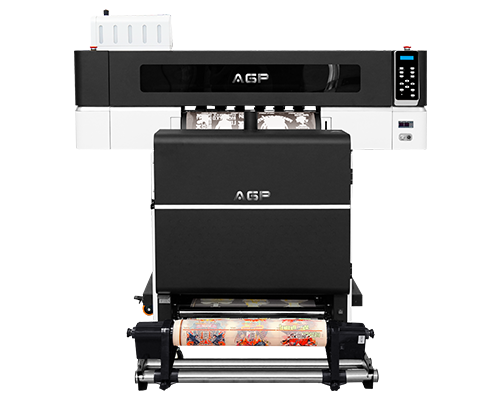

Our latest printing solution designed for exceptional performance and versatility. Equipped with Epson I3200-A1 printheads, this series offers high-quality printing with options for 2, 3, or 4 printheads. Achieve fast printing speeds of 4PASS 23m²/h or 6PASS 15m²/h, and enjoy a wide range of vibrant colors with 4C+W or 4C+Fo+Fm+Fy+Fg+W options. The printer features advanced functions like auto-feeding and take-up system, independent heating, and an efficient ink system. With compatibility with popular RIP software and a compact design, the DTF-T652/653/654 is the ultimate printing solution for businesses seeking superior performance and efficiency. Upgrade your printing capabilities today and experience the future of printing technology.

Model	DTF-T652			DTF-T653	DTF-T654
Printhead	Epson I3200-A1/Epson I1600-A1
Quantity	2			3	4
Printing Color	4C+W			4C+Fo+Fm+Fy+Fg+W	4C+W

Printing Speed	I3200-A1	High speed mode	7201800DPI 6PASS 9m²/h 7202400DPI 8PASS 6m²/h		7201200DPI 4PASS 23m²/h 7201800DPI 6PASS 15m²/h 720*2400DPI 8PASS 11m²/h
		High precision mode	7201800DPI 6PASS 7m²/h 7202400DPI 8PASS 5m²/h		7201200DPI 4PASS 18m²/h 7201800DPI 6PASS 12m²/h 720*2400DPI 8PASS 9m²/h
	I1600-A1	720900DPI 6PASS 4²m/h 7201200DPI 8PASS 3²m/h 720*1800DPI 12PASS 2²m/h			720900DPI 6PASS 13m²/h 7201200DPI 8PASS 9m²/h 720*1800DPI 12PASS 6m²/h
					720900DPI 6PASS 10m²/h 7201200DPI 8PASS 7m²/h 720*1800DPI 12PASS 5m²/h
Printing Size	600mm
RIP Software	Riin/Flexiprint/Cadlink/Maintop/NeoStampa
Media Transfer	Auto-feeding and take-up system
Heating Method	Front and back independent heating
Ink System	Auto ink supply, white ink circulating, and stirring
Power Supply	Printer: 110V/220V 350W 50~60HZ Powder Shaker: 220V 3500W 50~60HZ





Work Environment	Temperature:20°C-30°C humidity:35%-65%
Machine Size/Weight	Printer: 17958001590mm 230kg Powder Shaker: 96510101082mm 97kg

Packaging Size/Weight	Printer: 1910770870mm 243kg Powder Shaker: 9407801190mm 116kg

Features

DTF Printer Features

With its Epson printheads and multiple quantity options, you can achieve exceptional print quality with fast speeds. The ability to print in a wide range of colors ensures vibrant and eye-catching results. The advanced features, such as auto-feeding and take-up system, independent heating, and efficient ink system, enhance productivity and reduce downtime.

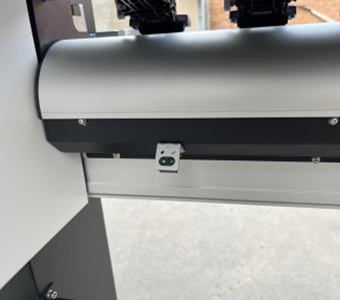

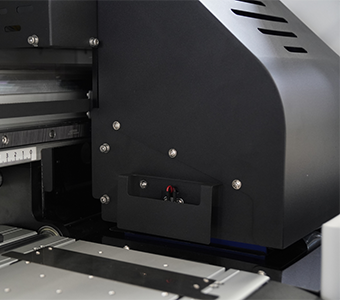

Anti-Collision System

The trolley is equipped with an anti-collision device to protect the print head from damage in the event of an obstacle.

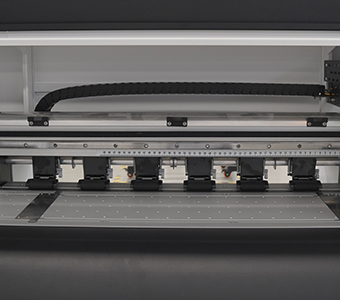

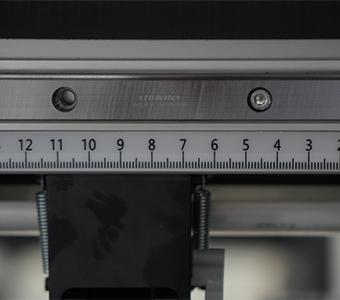

High Precision Guide Rail

Using HIWIN rails, smooth and noiseless, ensures efficiency and stable operation of the trolley.

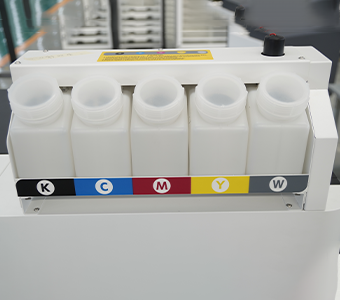

4C+Fo+Fm+Fy+Fg+W Cartridges

Support 9-color printing, fuller color, large-capacity ink cartridges, reduce frequent ink refilling, saving time.

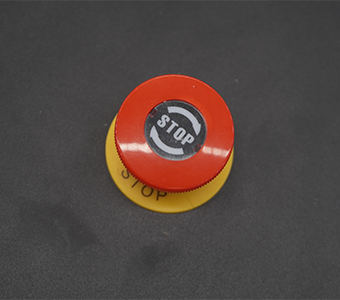

Emergency Button

The printing process can be stopped immediately if any problem occurs, ensuring operator safety and preventing potential equipment damage.

Paper Pressing Wheel

Integrated paper pressing wheel, paper feeding more smoothly

Paper Out Alert

Automatically stop printing when there is no paper to avoid ink waste and platform pollution.

3 Big Steps

Printing Step

DTF printing is a simple three-step process: print the design onto PET film, apply and cure hot-melt powder, then heat press the transfer onto the garment—delivering vibrant, durable prints with minimal setup.

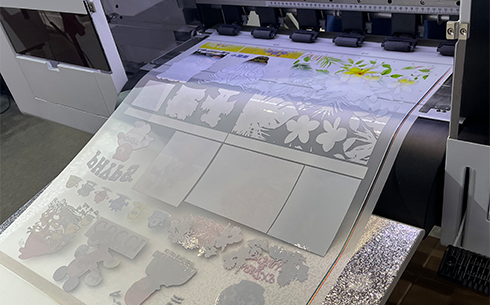

1

Printing

2

Dusting, shaking and drying powder

3

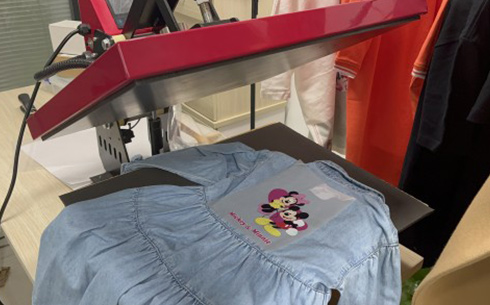

Heat transfer

What Can We Do with DTF Printers

Creativity At Your Fingertips

DTF printers can print on light and black fabrics, are not limited by fabrics and colors, especially suitable for DIY printing. Suitable for leather, bags, shoes, hats, garments, socks, masks, gloves, umbrellas, plush toys, knitted underwear, swimwear and other textile and textile crafts.

Technical Support

Through cooperation with world famous print head manufacturers and software suppliers, we integrate sophisticated and practical technology into our fabric printers.

Provide one-year warranty for the machine

Provide a detailed installation tutorial for the machine

Provide guidance documents for solving common problems of DTF printers

Provide online remote guidance

People's View Of The Product

What Are People Saying About The DTF PRINTER?

We love hearing what our customers say about our products

Get Quote Now

PARTNER WITH US FOR YOUR FUTURE

Relevant Products

We provide one-stop service, including DTF printer, shaker machine, UV DTF printer, DTF ink, PET film, powder, etc.

DTF-T656 DTF Printer

Printhead:Epson I3200-A1

Quantity:5/6

Printing Size:600mm

RIP Software:Riin/Flexiprint/Maintop/NeoStampa,etc

Printer Dimension:1970*805*1563mm 216kg

Media Transfer:Auto-feeding and take-up system

More+

DTF-E30T 1*EPSON F1080

Printhead:1*EPSON F1080

Print Width:330mm

Print Colors:CMYK+W

Printhead Quantity:1

Max Printing Speed:8PASS 5.2m/h

More+

DTF-E30 DTF Printer

Printhead:Epson F1080 printhead

Print Width:300mm

Print Colors:CMYK+W

Printhead Quantity:1

Computer System:WIN10/WIN11

Max Printing Speed:8PASS 4m/h

More+

DTF-T30 DTF Printer

Printhead:2 Epson I1600-A1

Print Width:300mm

Print Colors:CMYK+W

Printhead Quantity:2

Computer System:Windows

Max Printing Speed:6PASS 4m² / h, 8PASS 3m² / h, 12PASS 2m² / h

More+

DTF-TK1600 DTF Printer

Printhead:Epson I3200-A1

Quantity:5/6

Printing Size:1600mm

RIP Software:Riin/Flexiprint/Maintop/CAD Link//NeoStampa,etc

Ink System:Auto ink supply,white ink circulating and stirring

Machine size/weight:2970*850*1565mm 271kg

More+

Submit a Quick Quote

PARTNER WITH US FOR YOUR FUTURE

Question Answers

If I have some technical problem, how can you help us to solve it?

We will be responsible for after-sales service. You can send us detailed descriptions, photos, or videos, then our technician will give a professional solution accordingly.

Is there any warranty for this printer?

Yes, we provide 1 year warranty for the printers and with perfect after-sales service.

How do you deliver the printer to me?

1. If you have a freight forwarder in China, we can arrange to deliver the goods to your freight forwarder’s warehouse. 2. If you do not have a freight forwarder in China, we can find cost-effective freight forwarders and transportation methods for you to deliver the goods to your country.

What's your delivery time?

Usually 7-15 working days after receiving the payment based on the order volume.

Are you a manufacturer or trade agent?

We are the top manufacturer of digital printers in China with more than 20 years experience. We can provide digital printers and accessories.

What certificates do your printers have?

CE certificate for DTF printer, MSDS certificate for the ink, PET film, and powder.

How can I install and start to use the printer?

Normally we provide detailed installation tutorial videos and user manuals. And we also have professional technicians to support you when you have any questions.
