DTF Cutter C7090

DTF Cutter
Intelligent DTF cutting device is specially used for PVC,leather, kraft paper,self-adhesive,TPU, reflective film and other flexible materials.
Click here to learn more
REQUEST A QUOTE
COMPARE MODELS
SHARE PRODUCT
PARTNER WITH US FOR YOUR FUTURE
Why did a Startup Choose A-GOOD-PRINTER
We treat every printer in serious and pragmatic attitude: strictly control the purchase of parts, owns rigor quality detection system of production links.Letting every consumer trustworthy in buying and using is the responsibility and the duty of our products; to solve every customer's problem is the only objective of our after-sales service.
Introduction
DTF Cutter Introduction
Intelligent DTF cutting device is specially used for PVC,leather, kraft paper,self-adhesive,TPU, reflective film and other flexible materials.
Get Quote Now

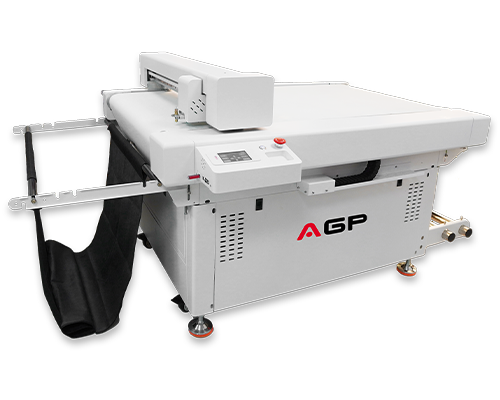

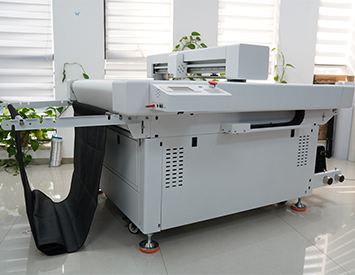

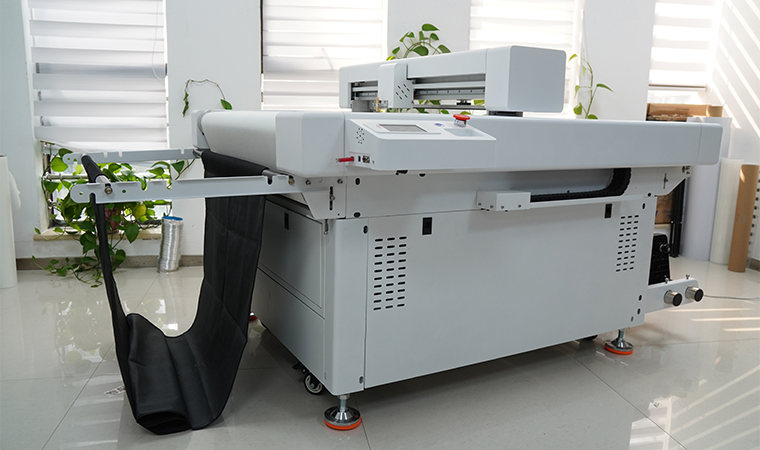

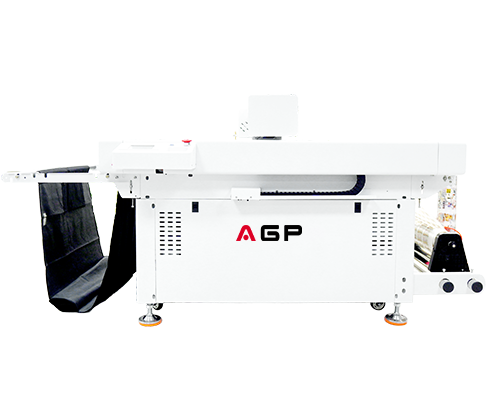

C7090 DTF Cutter Introduction
DTF Cutter
Parameter
DTF Cutter Parameter

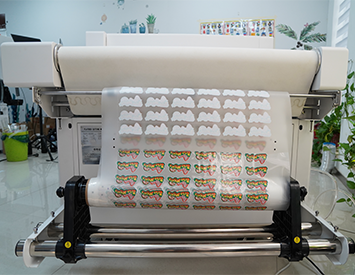

The C7090 cutting machine is usually used with our 60cm DTF printer, which can cut the DTF film after printing. After cutting, it can be transferred, which is very suitable for personalized heat transfer clothing customization.
Model C7090
Max cutting speed 1000mm/s
Cutting thickness ≤1.2mm
Cutting material Crystal labels / DTF pet film / self-adhesive Vinyl, etc
Cutting pressure 1000g
Cutting method Half cutting / Full cutting
Pen/Blade type Double blade structure
Media hold method Vacuum suction
Drive method High-speed servo drive
Mechanical resolution ±0.005mm
Standard Interface USB / U disk /Ethernet (WIFI Optional)
Compatible software Signmaster / Coreldraw / AI /AUTO CAD
Screen size 6.0 inches touch screen
Power supply

Rated Voltage:220V

50/60Hz(auto switching)

Working:2200W
Cutting area 700*900mm,unlimited cutting length( auto section pulling materials)
Machine size/weight 1460*1300*1000mm 220kg
Package size/weight 1600*1300*1100mm 240kg
Features
DTF Cutter Features
The cutting machine is usually used with our 60cm DTF printer to cut the PET film after printing is completed.

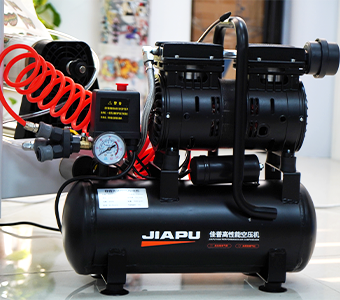

High power vacuum pump
High power vacuum pump
Fine workmanship, strong power

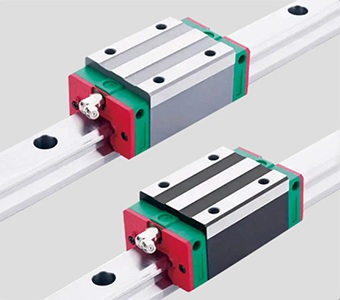

lmported linear guide rail
lmported linear guide rail
Comprehensive sealing system, smooth sliding without jamming, high positioning accuracy

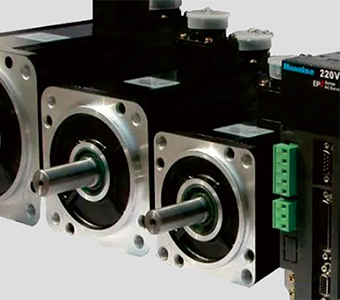

Servo motor
Servo motor
Small vibration, low heat, smooth operation at low speed

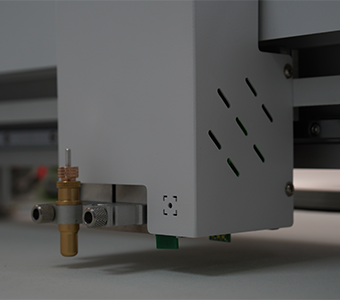

Pneumatic device
Pneumatic device
Small size, high precision

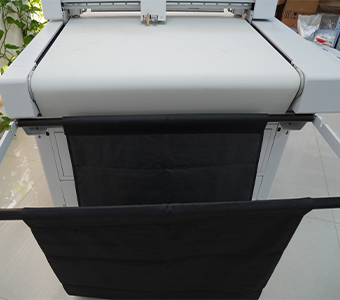

Honeycomb vacuum platform
Honeycomb vacuum platform
Light weight, heavy load, uniform suction

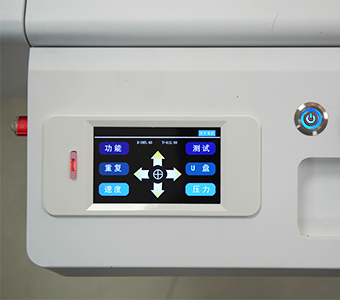

Touch screen
Touch screen
Touch screen,Easy to operate

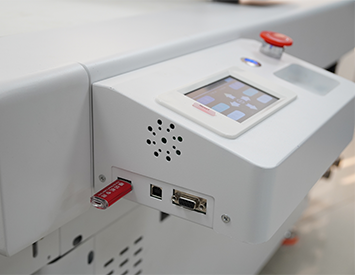

Multi interface
Multi interface
Meet different usage needs

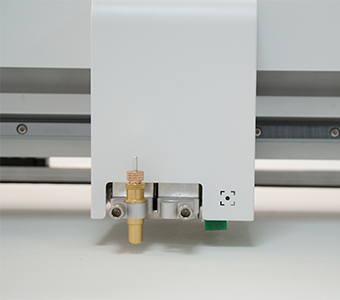

CCD camera and double cutting head
CCD camera and double cutting head
High-precision vision cutting system
What Can We Do with DTF Printers
Creativity At Your Fingertips
DTF printers can print on light and black fabrics, are not limited by fabrics and colors, especially suitable for DIY printing. Suitable for leather, bags, shoes, hats, garments, socks, masks, gloves, umbrellas, plush toys, knitted underwear, swimwear and other textile and textile crafts.
Technical Support
Technical Support
Through cooperation with world famous print head manufacturers and software suppliers, we integrate sophisticated and practical technology into our fabric printers.
Provide one-year warranty for the machine
Provide a detailed installation tutorial for the machine
Provide guidance documents for solving common problems of DTF printers
Provide online remote guidance
People's View Of The Product
What Are People Saying About The DTF Cutter?
We love hearing what our customers say about our products

Get Quote Now
PARTNER WITH US FOR YOUR FUTURE
Relevant DTF Printer
We provide one-stop service, including DTF printer, shaker machine, UV DTF printer, DTF ink, PET film, powder, etc.
Auto Powder Return Shaker Machine H650 Pro
Dual language touch screen easy to operate
Auto-returning powder device
Automatic correction
More+
Application:Efficient Smoke Removal
Power:200W 50HZ
Air:280m³
Moise:≤45DB
Weight:18kg
More+
Small size,lower shipping cost
Auto powder-recycling system
3-stage independent heating
Automatic powder return
More+
A3 DTF Printer Powder Shaker Machine
Small size,lower shipping cost
Auto powder-recycling system
Two Groups automatic correction devices
Three independent heating zones
Dual-motor take-up system
More+
Submit a Quick Quote
Name:
Country:
*Email:
*Whatsapp:
How did you find us ?
*Inquiry:
PARTNER WITH US FOR YOUR FUTURE
Question Answers
If I have some technical problem, how can you help us to solve it?
We will be responsible for after-sales service. You can send us detailed descriptions, photos, or videos, then our technician will give a professional solution accordingly.
Is there any warranty for this printer?
Yes, we provide 1 year warranty for the printers and with perfect after-sales service.
How do you deliver the printer to me?
1. If you have a freight forwarder in China, we can arrange to deliver the goods to your freight forwarder’s warehouse. 2. If you do not have a freight forwarder in China, we can find cost-effective freight forwarders and transportation methods for you to deliver the goods to your country.
What's your delivery time?
Usually 7-15 working days after receiving the payment based on the order volume.
Are you a manufacturer or trade agent?
We are the top manufacturer of digital printers in China with more than 20 years experience. We can provide digital printers and accessories.
What certificates do your printers have?
CE certificate for DTF printer, MSDS certificate for the ink, PET film, and powder.
How can I install and start to use the printer?
Normally we provide detailed installation tutorial videos and user manuals. And we also have professional technicians to support you when you have any questions.
